Aeration
Is a
pretreatment process which involves bringing water and air in close contact in
order to remove dissolved gases (such as carbon dioxide) and oxidizes dissolved
metals such as iron, hydrogen sulfide, and volatile organic chemicals (VOCs).
Aeration is often the first major process at the treatment plant.
Processes
•
Turbulence of aeration physically
removes these gases from solution allowing them to escape into surrounding air.
•
The second removal process is through
oxidation. Oxidation helps to remove certain gases and minerals.
•
Oxidation is a chemical combination of
oxygen from the air with certain undesirable metal in the water eg. iron and
Mn. Once oxidized these material become very fine suspended material in the
water which can be removed by filtration.
Removal of dissolved gases
(degasification)
CO2
High
solubility of CO2 reduces the pH of water which causes excessive consumption of
lime or other neutralizing agents in coagulation and softening process. The
corrosiveness of water is also higher at lower pH values. Exposure of water
droplets to air for 2sec will lower the CO2 by 70-90%.
CO2
> 10mg/L aeration is recommended
Otherwise
lime addition should be used to neutralize the CO.
METHANE CH4
Is a
colorless gas that is highly flammable and explosive and can be found in groundwater.
It may be formed by the decomposition of organic matter. It can be found in
water from aquifers that are near natural-gas deposits. Methane tends to make
the water taste like garlic. The gas is only slightly soluble in water, has a
low boiling point, vaporizes easily, and therefore is easily removed by the
aeration of the water.
TASTE &ODOR
Aeration
is also very good in removing taste and odours that caused by volatile
materials (materials that turn to vapour easily and have low boiling point) or
taste and odour caused by materials that can be readily oxidized.
Methane
and Hydrogen sulphides are two common dissolved gases that can be removed by
aeration.
Aeration
is not an efficient method for removing the taste & odor compounds produced
by algae because algal oils cause taste and odor not volatile
Sources of taste and odour:
Ø Dissolved
gases
Ø Organic
matter from algae and other microorganisms
Ø Presence
of phenol
Ø Chlorine
Aeration
is effective in removing taste and odour which are caused by volatile
materials.
HYDROGEN SULFIDE
H2S
(highly soluble in water). Occurs mainly in groundwater supplies, and may be
caused by the action of iron or sulphur reducing bacteria in the well. The
rotten-egg odor often noticed in well waters is caused by hydrogen sulfide.
Hydrogen sulfide in a water supply will disagreeably alter the taste of coffee,
tea, and ice. Occasional disinfection of the well can reduce the bacteria
producing the hydrogen sulfide.
Ø H2S
poisoning is one of the lauding causes of accidents in the field. Hazardous
levels are:
•
5ppm: Moderate odor.
•
10ppm: Eye irritation begins
•
Hazardous levels 30ppm: Strong ,
unpleasant odor of rotten egg
•
100ppm: Loss of smell
•
>300ppm: Unconsciousness, death
Ø oxygenation
of water (gasification, absorption)
Ø Removal
of iron and manganese (oxidation) (gasification, absorption)
IRON AND MANGANESE
Ø Water
containing more than 0.3 mg/l of iron will cause yellow to reddish-brown stains
of plumbing fixtures or almost anything that it contacts andcan deposit on pipe
walls, wells and valves
Ø If the concentration exceeds 1 mg/l, the taste
of the water will be metallic and the water may be turbid.
Ø Manganese
in water, even at levels as low as 0.1 mg/l, will cause blackish staining of
fixtures and anything else it contacts. Manganese concentration levels that can
cause problems are 0.1 mg/l and above.
Ø If
the water contains both iron and manganese, staining could vary from dark brown
to black.
Ø Typical
consumer complaints will be that laundry is stained and that the water is red
or dirty. Water containing both iron and manganese should not be aerated unless
filtration is provided
Ø .
TYPES OF AERATORS
•
Aerators fall into two categories. They
either introduce air to water, or water to air. The water-in-air method is
designed to produce small drops of water that fall through the air. The
air-in-water method creates small bubbles of air that are injected into the
water stream. All aerators are designed to create a greater amount of contact
between air and water to enhance the transfer of gases and increase oxidation.
WATER-INTO-AIR AERATORS
Ø Cascade
Aerators
A
cascade aerator (one of the oldest and most common aerators) consists of a
series of steps that the water flows over (similar to a flowing stream). In all
cascade aerators, aeration is accomplished in the splash zones. Splash zones
are created by placing blocks across the incline. Cascade aerators can be used
to oxidize iron and to partially reduce dissolved gases.
Ø Cone
Aerators
Cone
aerators are used primarily to oxidize iron and manganese from the ferrous
state to the ferric state prior to filtration. The design of the aerator is
similar to the cascade type, with the water being pumped to the top of the
cones and then being allowed to cascade down through the aerator.
Ø Slat
and Coke Aerators
Slat
and coke trays are similar to the cascade and cone aerators. They usually
consist of three-to-five stacked trays, which have spaced wooden slats in them.
The trays are then filled with fist-sized pieces of coke, rock, ceramic balls,
limestone, or other materials. The primary purpose of the materials is
providing additional surface contact area between the air and water.
Ø Draft
Aerators
Draft
aerators are similar to other water-into-air aerators, except that the air is
induced by a blower. There are two basic type of draft aerators. One has external
blowers mounted at the bottom of the tower to induce air from the bottom of
the tower. Water is pumped to the top and allowed to cascade down through the
rising air.
•
The other, an induced-draft aerator, has
a top-mounted blower forcing air from bottom vents up through the unit to the
top. Both types are effective in oxidizing iron and manganese before
filtration.
Ø Spray
Aerators
Spray
aerators have one or more spray nozzles connected to a pipe manifold. Water
moves through the pipe under pressure, water is distributed into air in the
form of small droplets by means of orifices and nozzles mounted on a
stationary pipe system. Orifices and nozzles may be constructed to discharge
water vertically and at an angle, in upward or downward direction.
Ø Spray
aeration is successful in oxidizing iron and manganese and increases the
dissolved oxygen in the water.
Air-Into-Water Aerators
Ø Diffused
– Air Aeration Systems
air
is introduced into liquid being aerated in the form of bubbles which typically
rise through the liquid
Ø common
device for ;
•
transferring oxygen in aerobic
biological treatment systems
•
air stripping of volatile organics
Ø the
size of bubbles varies from coarse to fine-bubble diffusers and coarse bubble
diffusers
Ø Pressure
Aerators
•
There are two basic types of pressure
aerators. One uses a pressure vessel; where water to be treated is sprayed into
high-pressure air, allowing the water to quickly pick up dissolved oxygen.
•

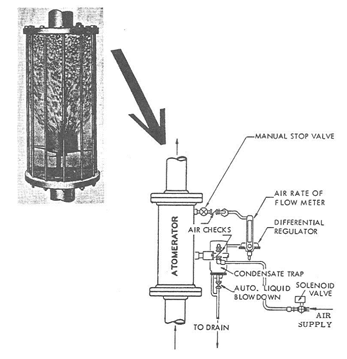

The other is a pressure aerator commonly
used in pressure filtration Air is injected into the raw water piping and
allowed to stream into the water as a fine bubble, causing the iron to be
readily oxidized.
•
The higher the pressure, the more
readily the transfer of the oxygen to the water. The more oxygen that is
available, the more readily the oxidation of the iron or manganese.
Ø Centrifugal
Aerators
Centrifugal
aerators create enhanced conditions for dissolving gas into liquid phase,
including bubble size, and bubble size distribution and duration of interaction
with liquid. Centrifugal aerators combine several elements:
Ø High
turbulence swirling flow of liquid;
Ø Orthogonal
flow of liquid and gas;
Ø Constant
pressure inside the vessel;
Ø Optimum
flow velocity generating centrifugal forces thereby extending diffusion rate
within the vessel;
Ø Very
small pores, through which gas permeates into the liquid and is sheared off
into liquid phase, thereby forming small bubbles.
Combination aerators
•
Mechanical aerators
Operate
by producing a large air-water interface the transfer of oxygen from atmosphere
is enhanced. The aerator can be a vertical shaft or horizontal shaft.
Ø Very
small pores, through which gas permeates into the liquid and is sheared off
into liquid phase, thereby forming small bubbles.
Micro straining
Is
a very fine screen used to remove algae, other aquatic organisms and small
debris that can clog treatment plant filters.
•
The microstrainer unit consists of a
rotating drum that is lined with finely woven materials such as stainless wire
fabric. The drum rotates slowly, usually 4 to 7 revolutions per minute (rpm) as
water enters the inside of the drum and flows outward through the fabric.
•
Algae and other aquatic organisms
deposited on the inside of the fabric form a mat of debris, which adheres to
the fabric and rotates up to the backwash hood area.
•
At the top of rotating drum, a high
pressure jet spray the back side of the fabric causing the matted debris to
break away. The debris and backwash water fall by gravity into a debris trough
inside the drum and flow either direct to a disposal point or to a pond or tank
that separates the debris from water.
•
Microstrainers removes from 50-90 % of
the filter clogging materials from water depending on type of algae present.
•
Microstrainers can not remove all algae
and they do not remove bacteria, viruses or most suspended matters that
contributes to turbidity. Even eggs of tiny aquatic organism can pass through
the fabric. Microstrainers have no effect on the removal of dissolved
substances such as organic and inorganic chemicals.
•
Microstrainers should not be used as a
substitute for coagulation / flocculation, filtration.
Ø Flow
measurements
•
Water flow is measured to assess how
much water is available for a supply and to check the quantity of water flowing
through a system or treatment plant.
•
Flow control is essential in water
plants and for effective disinfection of distribution networks. Most water
treatment processes required a controlled constant flow of water in order to
operate effectively and efficiently.
•
Water flow must be controlled
continuously and accurately during treatment. This is important because in most
treatment processes, if the flow of water is not constant (within set limits),
the treatment may be inefficient and the water supplied of poor quality.
•
Flow measurements give an indication of
the efficiency of a process and indicate if filter bed needs cleaning.
Measurement of water flows through treatment processes must be done regularly.
Types of measuring devices for water flow in treatment plant are as follows:
•
Ultrasonic meters
•
Magnetic flow meters.
•
Pressure differential meters
•
Velocity meters
